AutoCount Vehicle Master Plugin User Guide

Use VehicleMaster to maintain vehicle records, copy vehicle and foreman details into supported documents, review vehicle balances and history, run collection reports, and repair historical vehicle data.

AutoCount Vehicle Master video guide

Watch the existing Chinese video for an additional walkthrough. Follow the corrected written workflows below for current behaviour and field details.

Chinese video

Before you begin

This guide follows VehicleMaster version 2.2.29.43.

  • Assign only the VehicleMaster functions required for each user.
  • Sign in again after access-right changes.
  • Vehicle Balance uses purchase, sales, and return records; the Active checkbox alone does not determine availability.
  • Back up the current account book before running Fix Vehicle Error because the repair starts immediately and affects historical data.

1. Set VehicleMaster access rights

  1. Open General Maintenance > Access Right Maintenance.
  2. Expand SL_Plugin > Vehicle Master Plugin.
  3. Assign Show Vehicle Color Maintenance, Show Active Vehicle Listing, Show Vehicle History Listing, Show Daily Collection Report, and Show fix vehicle error button as required.
  4. Save the changes and sign in again as the affected user.

Show Active Vehicle Listing controls Vehicle Balance.

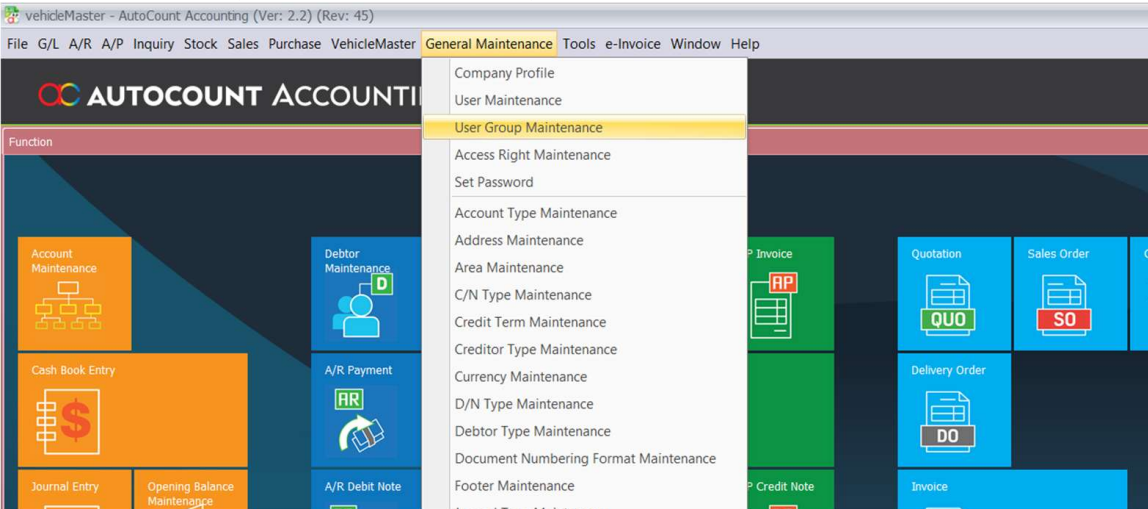

Screenshot 2026 09 17 161346
Vehicle Master Plugin access-right tree.

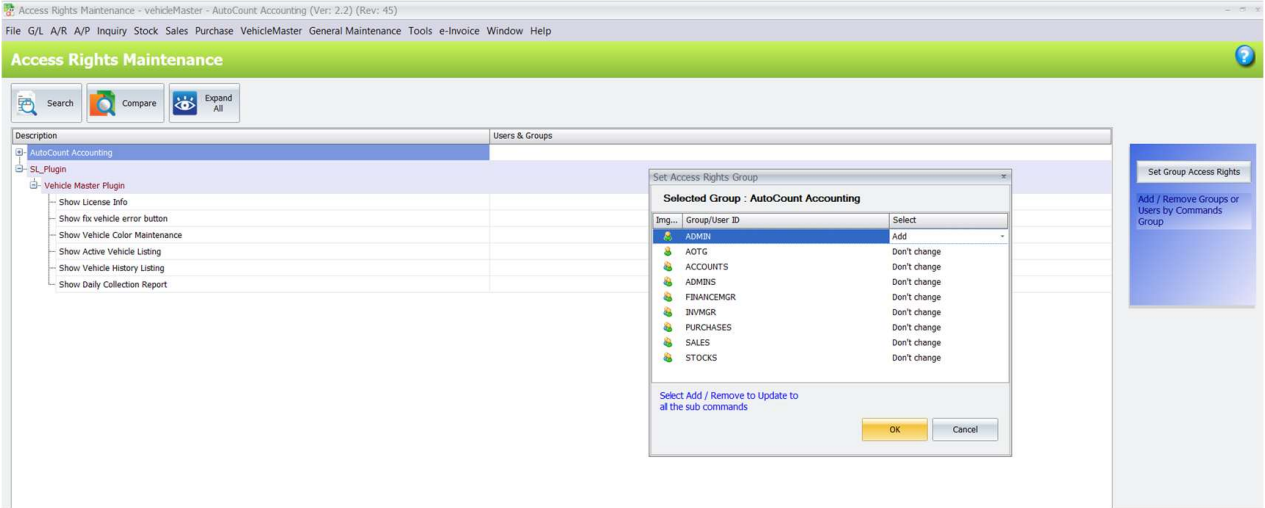

Screenshot 2026 09 17 161411
VehicleMaster function permissions.

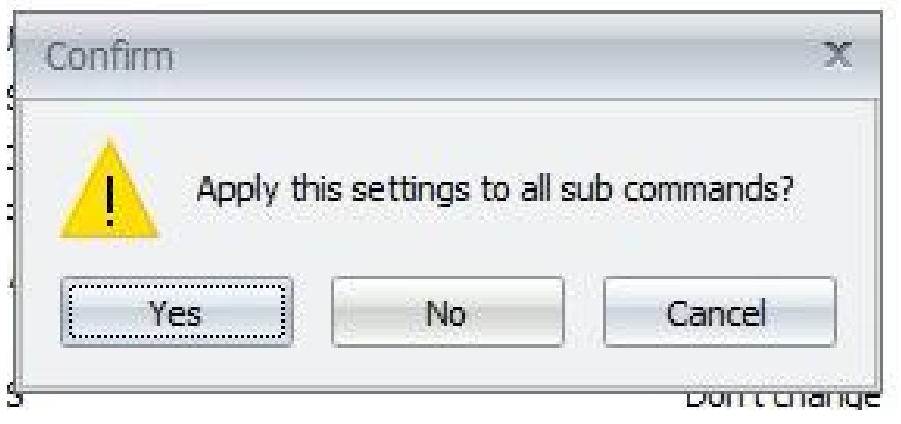

Screenshot 2026 09 17 153433
Assigning VehicleMaster rights to a user or group.

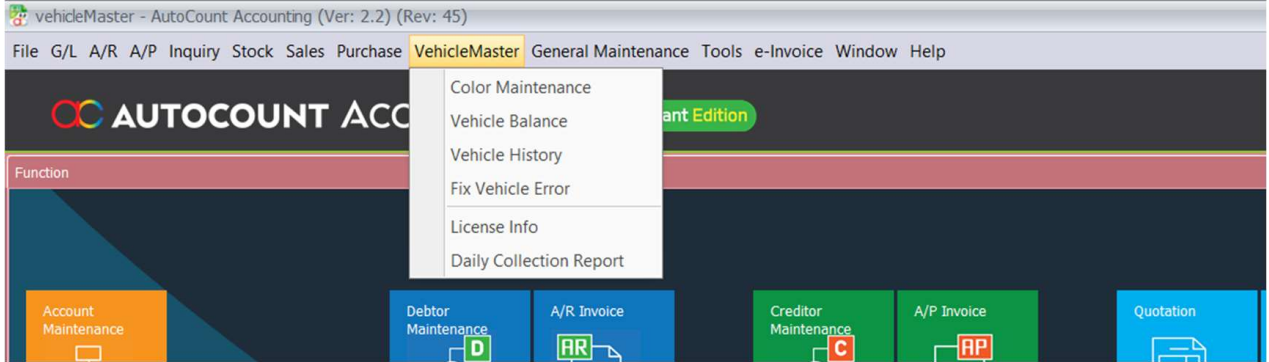

Screenshot 2026 09 17 161504
VehicleMaster menu after the user signs in again.

2. Maintain vehicle information

Vehicle information is maintained from the Vehicle tab added to Creditor Maintenance.

  1. Open an existing Creditor record or create a new one.
  2. Open the Vehicle tab.
  3. Click Add, or double-click an existing row to open Vehicle Maintenance.
  4. Enter or revise the details. Chassis numbers must not exceed 17 characters, and registration numbers cannot duplicate another vehicle under the same creditor.
  5. Click OK, then save the creditor.

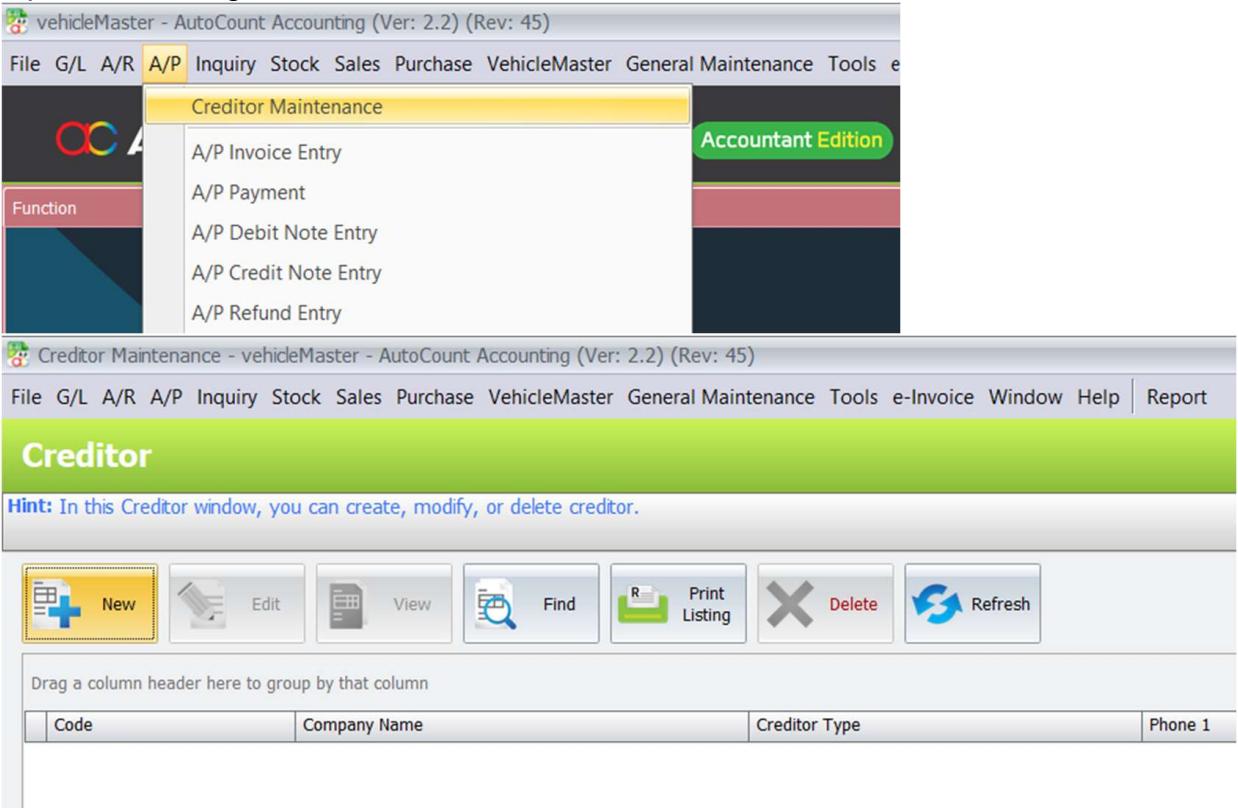

Screenshot 2026 09 17 161535
Opening a creditor record for vehicle maintenance.

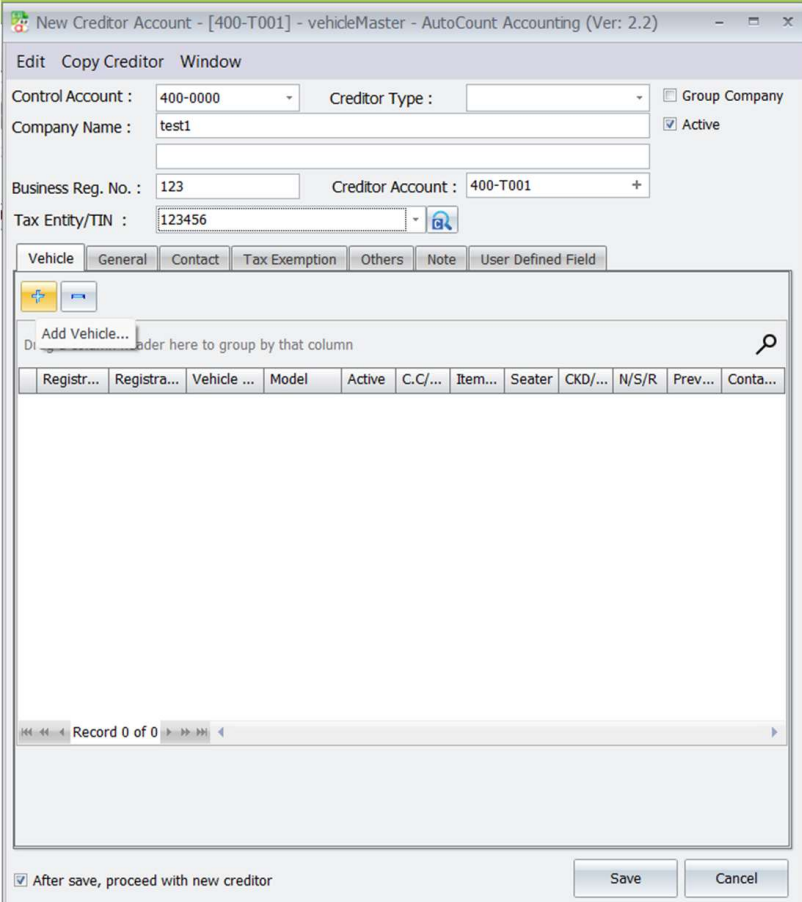

Screenshot 2026 09 17 161611
Vehicle tab in Creditor Maintenance.

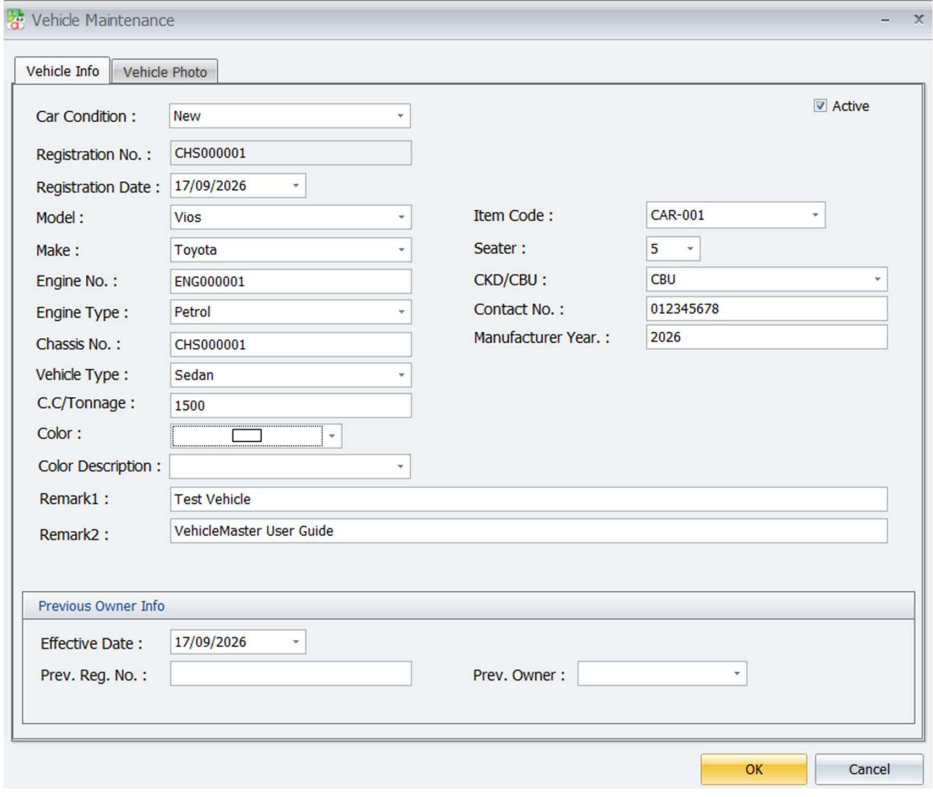

Screenshot 2026 09 17 161629
Adding or editing a vehicle record.

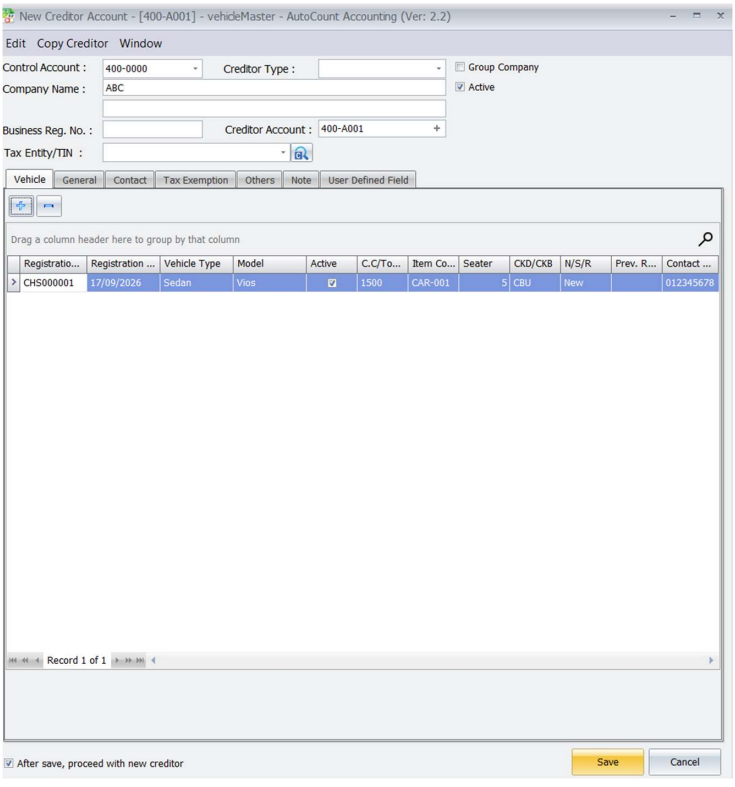

Screenshot 2026 09 17 161723
Saving Vehicle Maintenance and the creditor.

3. Maintain vehicle colours

  1. Open VehicleMaster > Color Maintenance.
  2. Click New, or select a record and click Edit.
  3. Enter or revise Color, Description, the second description, and Active.
  4. Click OK.

The Color value must be unique and becomes available in Vehicle Maintenance.

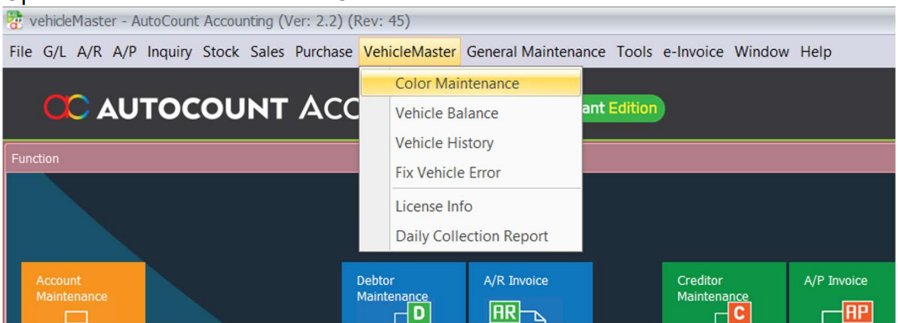

Screenshot 2026 09 17 161803
Opening Vehicle Color Maintenance.

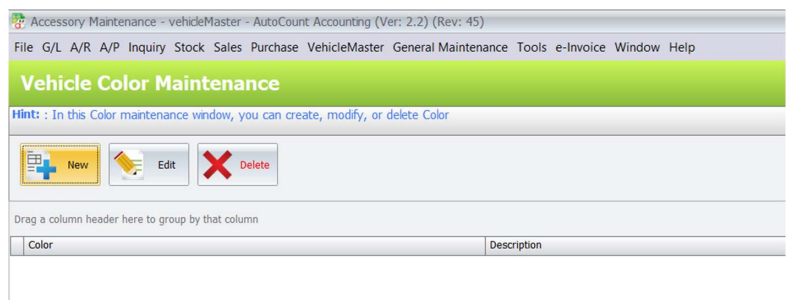

Screenshot 2026 09 17 161822
Creating or editing a vehicle colour.

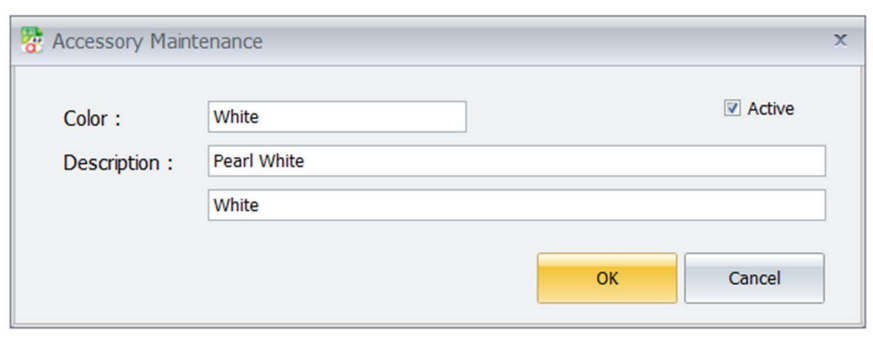

Screenshot 2026 09 17 161842
Saving a unique vehicle colour record.

4. Paste vehicle information into documents

Paste Car Info selects an active vehicle and copies its details into the current document.

Sales Order

  1. Open a Sales Order and select Home > Foreman Info > Paste Car Info.
  2. Find the vehicle, select its row, and click OK.
  3. Review WDebtorName, WVehicleNo, WChasisNo, WengineNo, WRegDate, and WModel, then save. WDebtorName receives the account code.

Invoice

  1. Open an Invoice and select Home > Vehicle Info > Paste Car Info.
  2. Select the vehicle and click OK.
  3. Review BHirerName, BVehicleNo, BChasisNo, and BengineNo, then save. BHirerName receives the account code.

Invoice does not receive registration date or model fields.

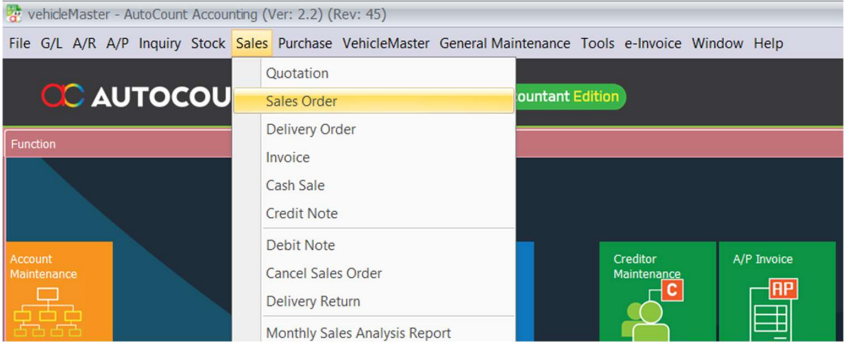

Screenshot 2026 09 17 161910
Opening Paste Car Info from a supported document.

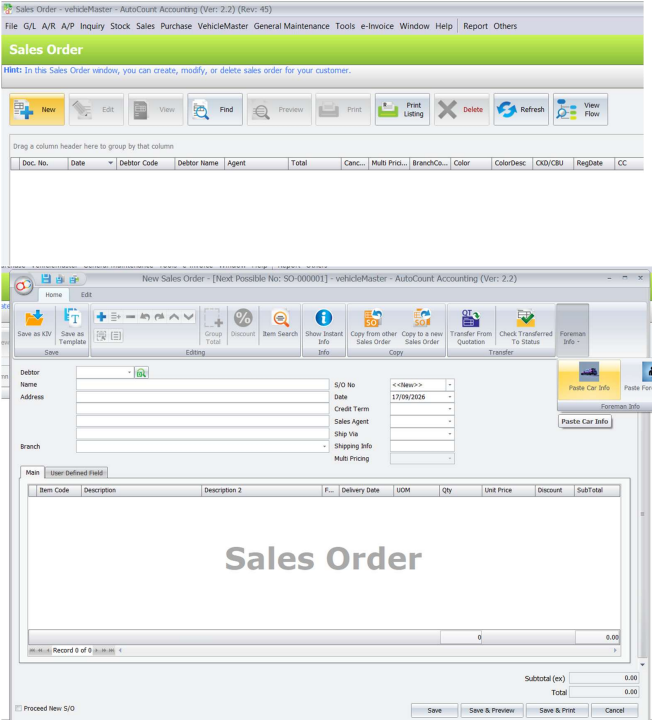

Screenshot 2026 09 17 161925
Searching active vehicle records.

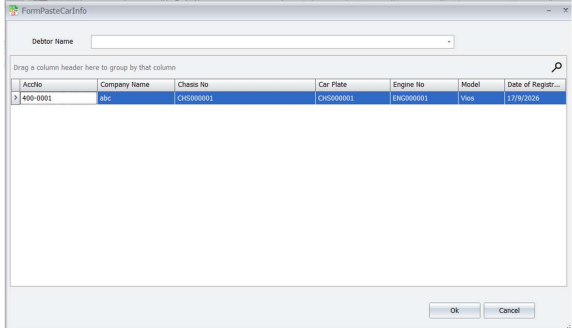

Screenshot 2026 09 17 161954
Selecting the required vehicle.

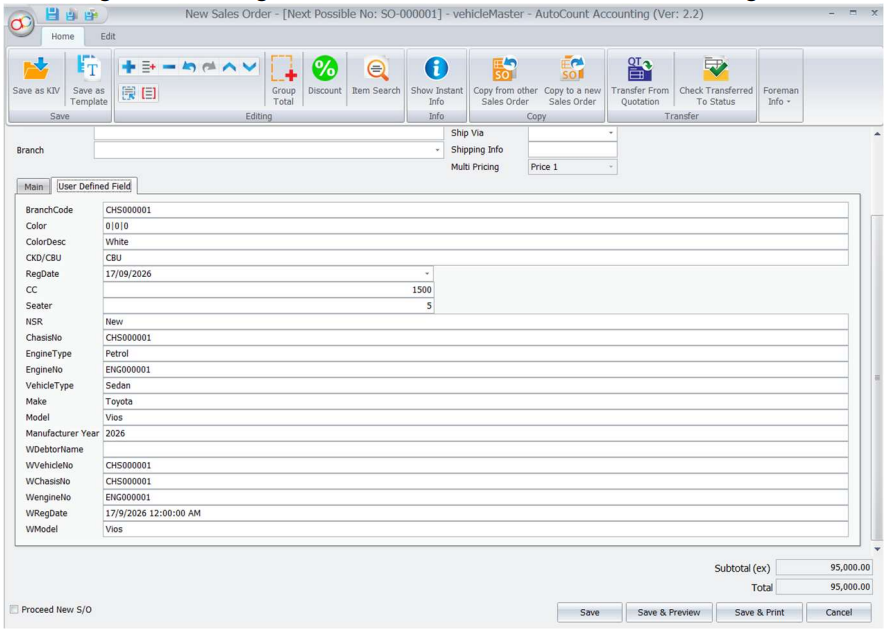

Screenshot 2026 09 17 162102
Vehicle details populated in User Defined Fields.

5. Paste foreman information into Sales Orders

Paste Foreman Info assigns selected people to Sales Agent, Foreman, and Supervisor.

  1. Open a Sales Order and select Home > Foreman Info > Paste Foreman Info.
  2. Choose an existing foreman or add a new one.
  3. Select no more than three people and assign only one person to each role.
  4. Click OK, then review all three roles. A role with no selected person is cleared.
  5. Save the Sales Order.

6. Review Vehicle Balance

Vehicle Balance shows unsold vehicle stock as of the selected date.

  1. Open VehicleMaster > Vehicle Balance.
  2. Select the Date and click Inquiry.
  3. Review Car Plate, Chasis No, Engine No, Model, account, company, document, cost, and N/S/R details.

Availability is calculated from purchase, sales, and return records; it is not based only on Active.

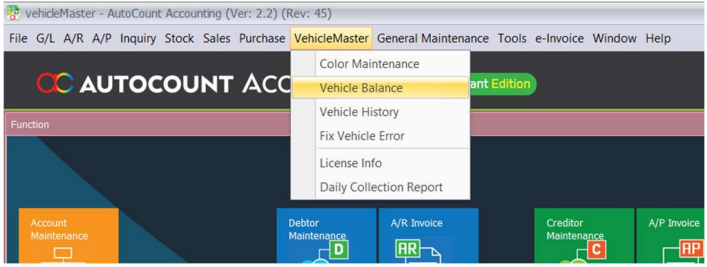

Screenshot 2026 09 17 162200
Opening Vehicle Balance.

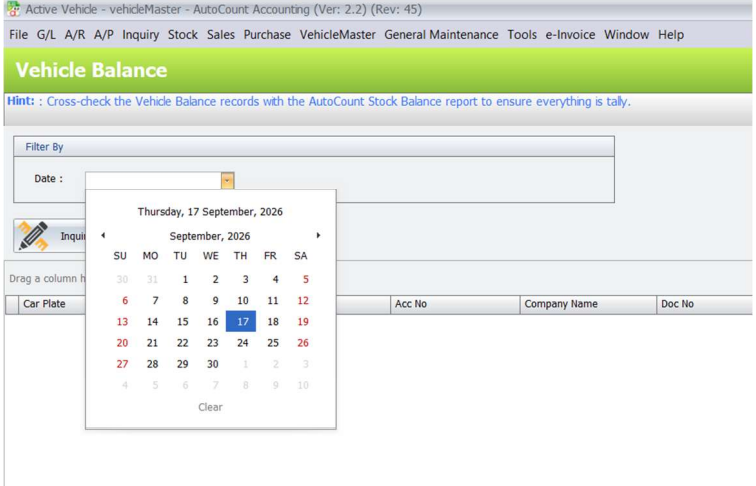

Screenshot 2026 09 17 162226
Selecting the inquiry date.

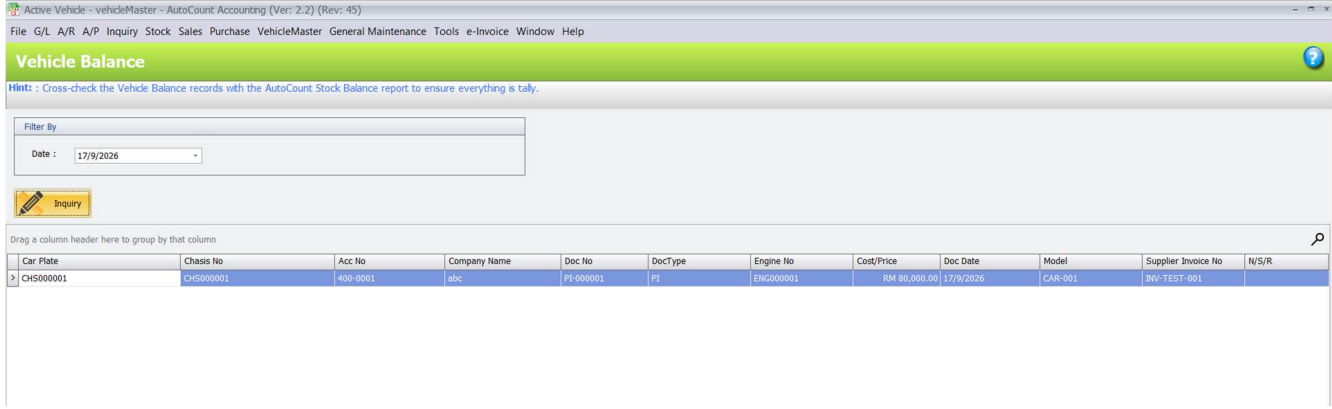

Screenshot 2026 09 17 162252
Reviewing the vehicle stock balance.

7. Review Vehicle History and update car plates

Inquiry

  1. Open VehicleMaster > Vehicle History.
  2. Select Item Code or Chasis No, then click Inquiry. Chasis No takes priority when both are selected.
  3. Review the vehicle and document details.

Update Car Plate

  1. Click Update Car Plate to open Change Branch Code.
  2. Review every Old BranchCode, NewBranchCode, and Chasis No row. Edit or remove rows as needed.
  3. Click OK, close the dialog, and run Inquiry again.

This is a batch correction across mapped vehicles, not only the selected row. Duplicate codes may receive a numeric suffix.

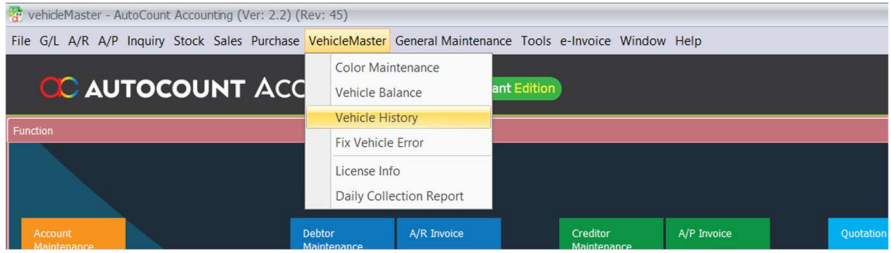

Screenshot 2026 09 17 162337
Opening Vehicle History.

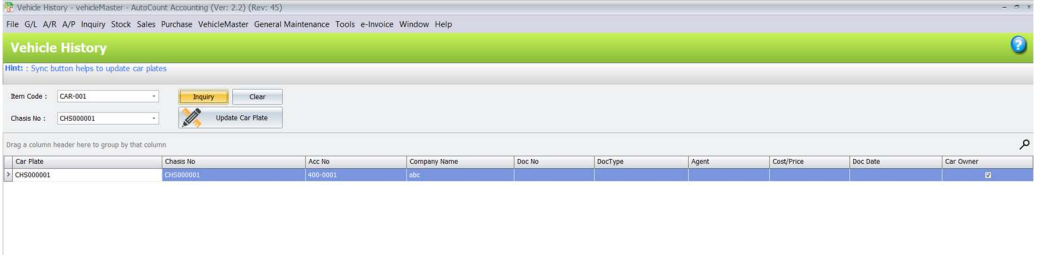

Screenshot 2026 09 17 162408
Reviewing vehicle document history.

8. Run the Daily Collection Report

  1. Open VehicleMaster > Daily Collection Report.
  2. Set Collection Date and To, then select Locations.
  3. Click OK. If prompted, select the report format and click OK.
  4. Review the preview, then print or export it.

The plugin registration check must pass before report generation.

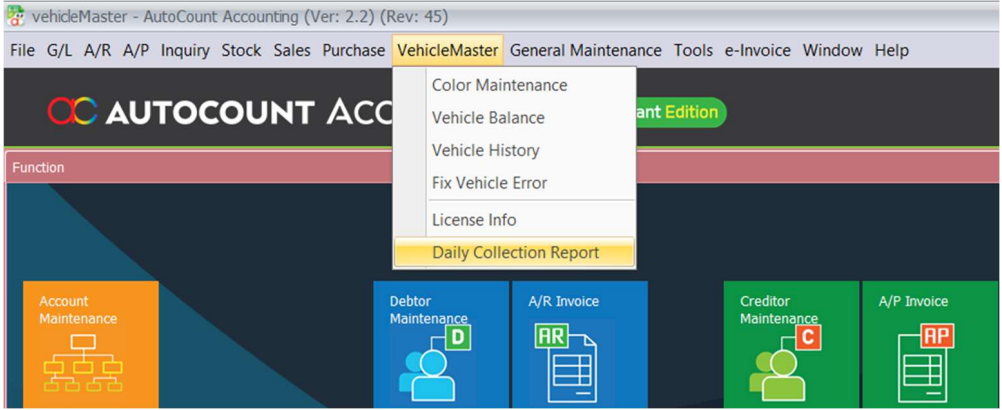

Screenshot 2026 09 17 162439
Opening the Daily Collection Report.

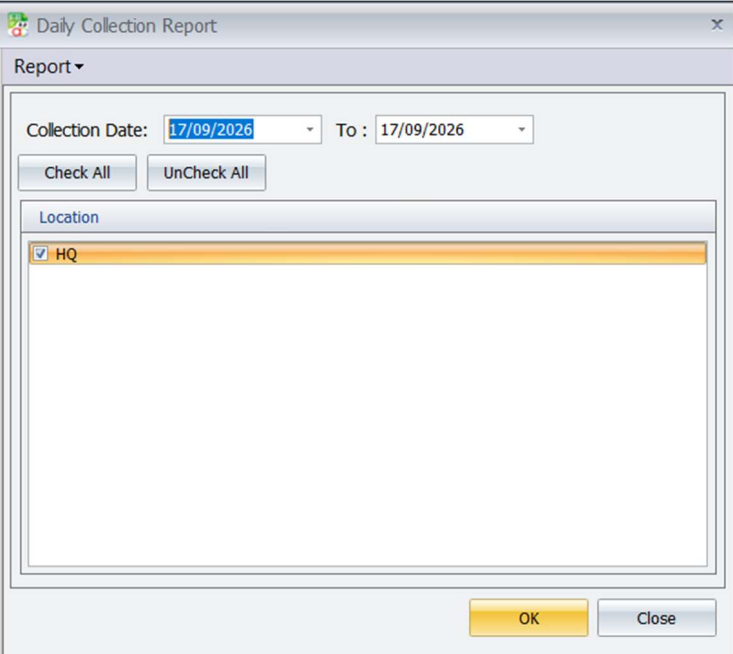

Screenshot 2026 09 17 162502
Selecting dates and locations.

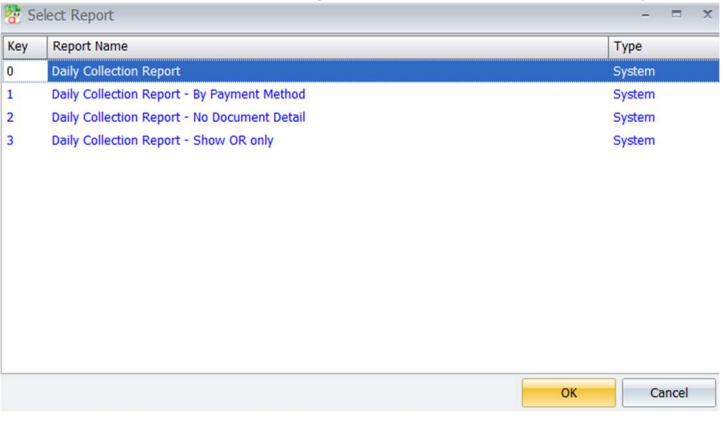

Screenshot 2026 09 17 162542
Choosing a report format.

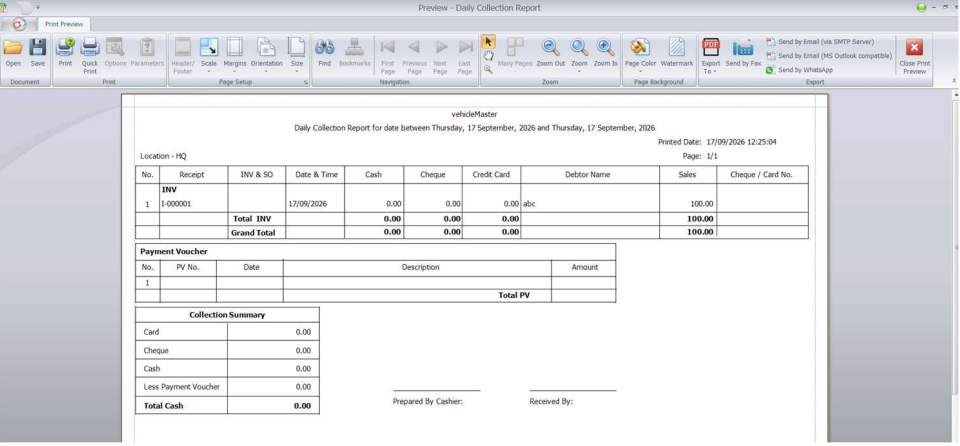

Screenshot 2026 09 17 162654
Reviewing the report preview.

9. Run Fix Vehicle Error

Important: create a current account-book backup first. This command starts immediately, has no selection form or confirmation dialog, and affects historical data.

  1. Open VehicleMaster > Fix Vehicle Error.
  2. Wait while it rebuilds chassis matching values, repairs mappings, removes duplicates, and updates costs, statuses, and transferred references.
  3. When “Success!” appears, click OK.
  4. Reopen the affected inquiries or records and review the results.

“Error Update” indicates a failure and includes details.

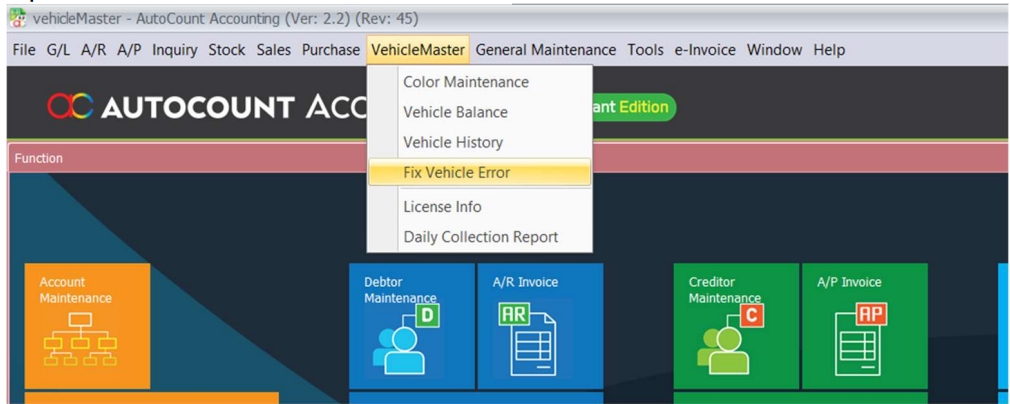

Screenshot 2026 09 17 162801
Opening Fix Vehicle Error.

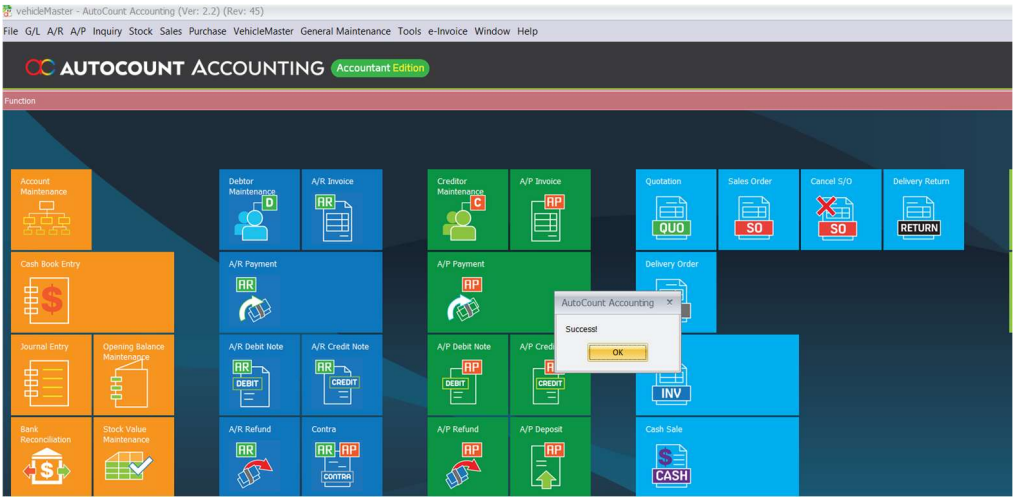

Screenshot 2026 09 17 162825
Fix Vehicle Error completion message.

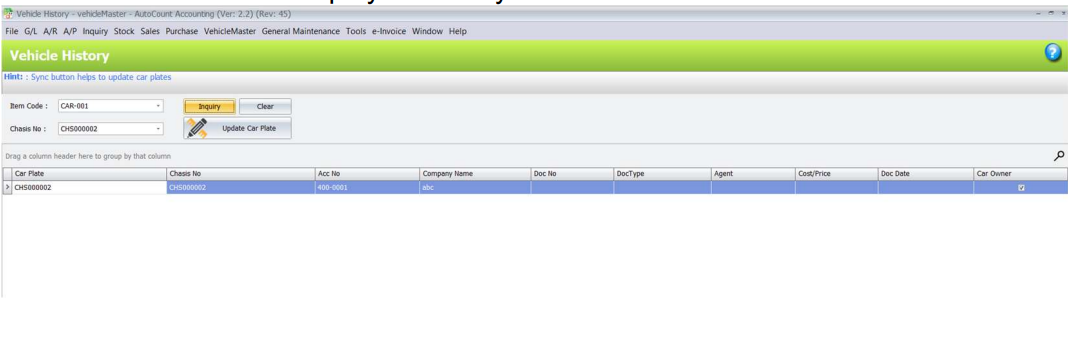

Screenshot 2026 09 17 162859
Reviewing vehicle information after repair.

Troubleshooting: checks before contacting support

  • A menu function is missing: check the matching right and sign in again.
  • A registration number is rejected: check for another vehicle with the same number under the creditor.
  • Vehicle Balance differs from Active: review purchase, sale, and return documents.
  • Paste Car Info cannot find a vehicle: confirm it is active and search by account or grid fields.
  • Vehicle History is unexpected: Chasis No takes priority when both filters are selected.
  • Before Fix Vehicle Error: confirm a current backup exists.

Frequently asked questions

Which right controls Vehicle Balance?

Show Active Vehicle Listing controls Vehicle Balance.

It cannot duplicate another vehicle under the same creditor. Chassis numbers also cannot exceed 17 characters.

No. Sales Orders receive W-prefixed fields including date and model; Invoices receive B-prefixed fields without date or model.

It calculates unsold stock from purchase, sales, and return records.

No. It is a batch correction across mapped vehicles. Review every proposed row.

Create a current account-book backup because the repair starts immediately.
